What Is Investment Casting? Understanding the Investment Casting Process

Investment casting is a precision metal manufacturing process used to produce complex components with excellent dimensional accuracy and surface finish. Also known as lost wax casting, this method is widely used in industries such as automotive, aerospace, valves, industrial equipment, and engineering.

But what is investment casting, and how does the investment casting process work? This guide explains the working principle, key steps, advantages, and applications of investment casting.

What Is the Investment Casting?

The investment casting process involves several stages. These include the production of wax pattern production to final inspection.

1. Pattern and Tooling Preparation

The first step is to design the required component using engineering drawings or 3D CAD models. A metal die or suitable tooling is then prepared to produce the wax pattern. For prototypes and low-volume production, 3D-printed patterns may also be considered.

2. Wax Pattern Production

Molten wax is injected into the die to from a wax pattern of the required component. The wax pattern reproduces the product's shape and surface details and it is possible to make multiple wax patterns and assembled them onto a central runner system, commonly called a wax tree, in order to increase production.

3. Ceramic Shell Formation

The wax pattern is dipped repeatedly into the ceramic slurry and coated with refractory sand for several layers to form a strong ceramic shell. The ceramic shell layers are built up to a certain thickness, depending on the part size, process requirements.

4. Wax removal

After the ceramic shell has hardened, the wax is removed from the shell by means of steam autoclaving or heating. The wax is often collected and reused. The ceramic shell is then fired in order to strengthen the mold and eliminate remaining wax residues.

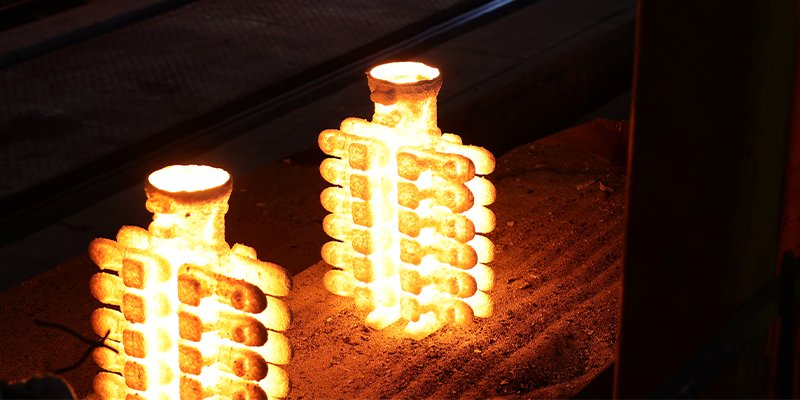

5. Molten Metal Pouring

Before pouring metal into the mold, the ceramic mold is preheated.

6. Cooling and Shell Removal

After pouring, the metal is allowed to cool and solidify. The ceramic shell is then removed through mechanical methods, vibration, or other suitable processes. The casting is separated from the runner system, and excess material is removed.

7. Finishing and Inspection

The final casting may undergo additional processes, including: Cutting and grinding, Heat treatment, CNC machining, Surface finishing, Dimensional inspection, Non-destructive testing, when required.

The specific operations depend on the product design, material, and customer requirements.

Advantages of Investment Casting

Investment casting offers several benefits for manufacturing complex metal components.

Complex Shapes and Fine Details

The ceramic shell and wax pattern can reproduce intricate geometries, including features that may be difficult to manufacture using conventional casting methods.

Excellent Surface Finish

Investment casting generally provides a smoother as-cast surface than many traditional sand casting processes. This can reduce the amount of secondary machining required.

High Dimensional Accuracy

The process supports the production of near-net-shape components, helping reduce material waste and machining requirements.

Actual dimensional accuracy depends on the material, component design, tooling, and process control.

Wide Material Compatibility

Investment casting can be used with various metals and alloys, including:

• Stainless steel

• Carbon steel

• Alloy steel

• Aluminum alloys

• Brass and bronze

• Other engineering alloys

Material selection should be based on the component's mechanical, thermal, and corrosion-resistance requirements.

Investment Casting Applications

Investment casting is used in a wide range of industrial applications, including:

Automotive: Engine components, brackets, housings, and other complex metal parts.

Industrial Equipment: Pump components, valve parts, fittings, and custom machinery components.

Aerospace: Precision components requiring complex geometries and specialized materials.

Medical Equipment: Small, detailed components manufactured according to specific design requirements.

Investment Casting vs. Other Casting Methods

Investment casting is particularly suitable when a component requires complex geometry, fine details, and a smooth surface finish.

Compared with sand casting, it generally provides finer surface details and can reduce machining requirements. However, its tooling, shell preparation, and production cycle may result in higher costs for certain applications.

Therefore, manufacturers should evaluate the product design, production quantity, and quality requirements before selecting a casting process.
