Precision Metal Stamping: Process, Benefits, Materials, and Applications

Precision metal stamping is a important manufacturing process used to produce accurate metal components. This process using specialized dies and stamping presses.  Manufacturers can cut, bend, form, or emboss metal into consistent shapes.

What is precision metal stamping? Is the right process for your part? The answer depends on elements such as material, part geometry, tolerance, production, and surface finishing requirements.

What Is Precision Metal Stamping?

Precision metal stamping makes use of a stamping press and custom-designed tooling to change flat sheet into a other shapes component.

Depending on the part design, metal stamping may involve several operations, including:

• Cutting: Cutting the basic shape from the sheet metal.

• Punching: Creating holes, slots, and openings.

• Bending: Forming sheet metal to a specific shape.

• Drawing: Forming flat sheet into deeper three-dimensional shapes.

The main advantage of precision stamping is repeatability. Once the tooling and production parameters are properly established, the same part can be produced consistently across large production runs.

How Does the Precision Metal Stamping Process Work?

1. Design and Tooling

Our engineers will review your 2D drawings or 3D CAD models. They assessment the phase dimensions, material, thickness, bends, holes, tolerances, and different necessities to decide the gorgeous stamping method.

Custom dies are then designed according to the part geometry. For complex components, progressive or multi-stage tooling may combine several operations in one production sequence.

2. Material Preparation

The selected sheet or coil material is prepared for production. Material selection important because they affect forming performance, tooling design, and final dimensional accuracy.

3. Stamping and Forming

The material is positioned or fed into the stamping press. The die applies controlled force to cut or form the metal according to the required shape.

4. Inspection and Finishing

After stamping, parts may also undergo deburring, machining, threading, welding, heat treatment, plating, powder coating, or other secondary operations.

FLUIDO's quality inspection includes dimensional measurement, hole inspection, visual inspection, and material verification. For critical components, inspection reports or material certificates may also be required.

What Materials Are Used in Precision Metal Stamping?

Material choice will depend on the working environment and performance requirements.

Carbon Steel is a strong materila, is also very efficiency, making it suitable for brackets and supports.

Stainless Steel, offering strong corrosion resistance. It is typically used in environments include moisture, chemicals etc.

Aluminum is very light, it has good corrosion protection, and it useful for applications where weight reduction is important.

Copper and brass are often selected for electrical and digital components because of their conductivity.

Precision Metal Stamping vs. CNC Machining

Two methods can both produce accurate metal components, but they are used for different production situations.

For low volume or complex machined parts CNC machining may be the better. However, large quantities of repeatable sheet metal parts are better suited to precision metal stamping.

Applications of Precision Metal Stamping

Automotive

This could include brackets, clips, terminals, connectors, shields, supports, and other metal components used in vehicle assemblies.

Electrical and Electronics

Stamped copper and brass parts are widely used for terminals, contacts, connectors, clips, and conductive parts.

Industrial Equipment

Industrial machinery often equipped with mounting brackets, covers, supports and clamps.

FAQ

What is precision metal stamping used for?

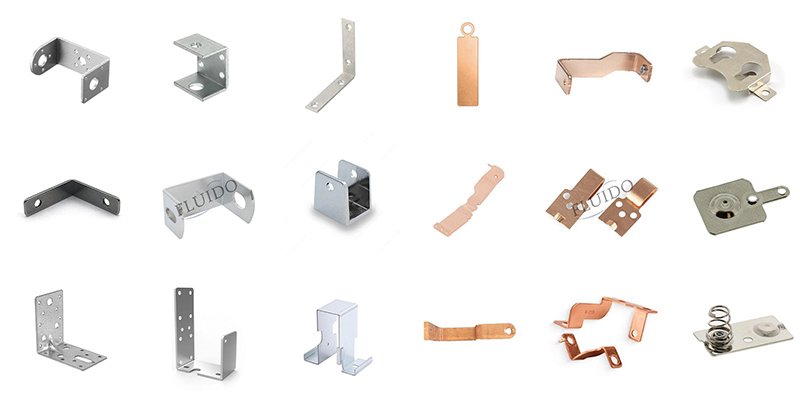

Precision metal stamping is for the manufacture repeatable metal components, such as: brackets, terminals, connectors, clips, supports, parts to be used for support.

Which metals can be used for precision metal stamping?

Using common materials such as carbon steel, stainless steel, aluminum, copper, and brass in precision metal stamping is quite typical. Also special alloys can be used to required mechanical and environmental properties.

Is precision metal stamping suitable for low-volume production?

Precision metal stamping can be used for low-volume, but for very small quantities, process like CNC machining, laser cutting, or other processes may be more suitable.

Conclusion

Precision metal stamping is an efficient manufacturing solution for producing accurate and metal components.

By choosing the correct material, tooling, equipment, and quality controls, precision metal stamping provides the ideal balance of precision, production efficiency, consistency, and cost.

Based on the part drawing and production requirements, our engineers design customized stamping dies for different components. For example, for bracket parts, the tooling can be designed to handle operations such as blanking, punching, bending, and forming according to the part structure. FLUIDO can customize the tooling based on the customer’s part drawings, material, thickness, dimensions, and production requirements.
